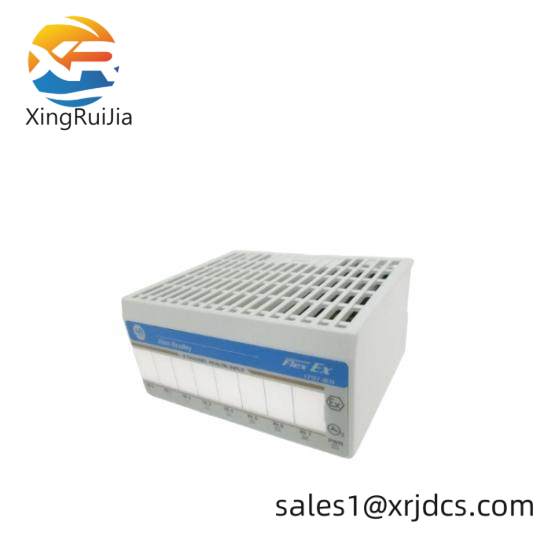

Advanced 1797-IE8 Analog Current Input Module: Precision & Reliability in Industrial Automation

Operating Voltage:24V DC

Input Range:4-20mA

Accuracy:±0.1% of full scale

Response Time:≤1ms

Power Consumption:≤1W

Communication Protocol:Modbus RTU

Dimensions:75mm x 55mm x 22mm

Weight:0.15kg

    The Allen-Bradley 1797-IE8 Analog Current Input Module is a critical component for industrial automation systems, engineered to handle high-precision current measurements. With its wide input range from -20mA to +20mA, it ensures reliable data acquisition across various applications.

    Featuring a ±0.02% accuracy at full scale, this module guarantees precise readings essential for accurate process control and monitoring. Its operating temperature range from -40°C to +70°C makes it suitable for use in a wide variety of industrial settings, ensuring consistent performance under challenging conditions.

    The 12-bit A/D converter provides high-resolution signal conversion, capturing subtle changes in current inputs for enhanced system responsiveness. The low power consumption of up to 15mA ensures efficient operation without compromising on performance.

    Designed with durability in mind, the Allen-Bradley 1797-IE8 is IP20 rated, protecting against dust and splashing water. This feature is particularly valuable in industrial environments where protection against dust and moisture is crucial.

    The compact size of 96mm x 54mm x 112mm allows for easy integration into existing systems, minimizing space requirements and facilitating streamlined installation processes. The panel mount design further simplifies installation, ensuring compatibility with various enclosure types.
